If you want a clean and interactive way to track tasks, highlight completed items, or manage data visually, using checkboxes in Microsoft Excel is one of the most effective tricks. By linking checkboxes with conditional formatting, you can automatically format entire rows with just one click.
Why Use Checkboxes for Row Formatting?
Checkboxes turn a static spreadsheet into something dynamic. Instead of manually changing colors or marking rows as done, you simply tick a box and let Excel handle the formatting. This is especially useful for task lists, project trackers, and inventory sheets.
Step 1: Insert Checkboxes
First, enable the Developer tab if it’s not already visible:
- Go to File > Options > Customize Ribbon
- Check Developer and click OK
Now insert checkboxes:
- Click on the Developer tab
- Select Insert > Checkbox (Form Control)
- Click anywhere in your sheet to place it
- Copy and paste the checkbox down the column for multiple rows
Step 2: Link Checkboxes to Cells
Each checkbox needs to be connected to a cell:
- Right-click the checkbox and select Format Control
- In the Control tab, set a Cell link (for example, B2)
- Click OK
Now, when the checkbox is checked, the linked cell will show TRUE. When unchecked, it shows FALSE.
Step 3: Apply Conditional Formatting
This is where the magic happens:
- Select the rows you want to format (e.g., A2:E20)
- Go to Home > Conditional Formatting > New Rule
- Choose Use a formula to determine which cells to format
Enter a formula like:
=$B2=TRUE
(Make sure the column matches your linked checkbox column.)
- Click Format, choose a fill color or style
- Click OK

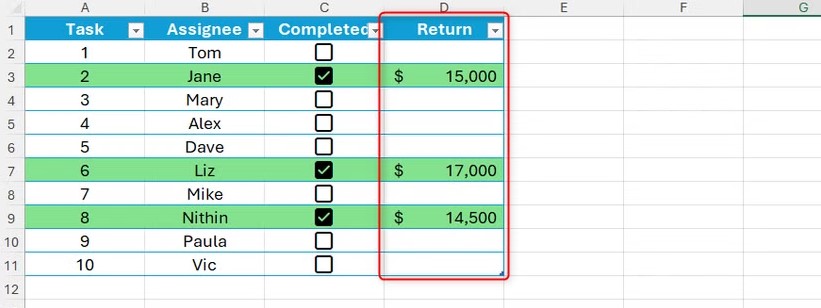

Step 4: Test It
Now simply check a box, the entire row should instantly change formatting. Uncheck it, and the formatting disappears.
Pro Tips for Better Results
- Keep your checkbox column hidden for a cleaner look
- Use soft colors like light green for completed tasks
- Combine with filters to quickly show checked or unchecked items
- Lock the sheet to prevent accidental edits
